The main technical requirements are met through the Russian Type Approval Certificate (TC-RU), certifying the UN regulations which the vehicle meets in accordance with the certificate (TC-RU). The Type Approval Certificate refers to the test reports for the regularory UN act reference. The Russian Type Approval Certificates and test reports are drawn up mostly in Russian or English language, as one of the three official languages for the UN regulations. Additional tests are peformed by the technical services TZV CZ and with regards to emission testing by TÜV SUD Czech.
The Russian Approval Certificate is granted through;
EAC and approved by the Russian approval authorities E22
Most test reports are issued by;
NAMI State Scientific Centre of the Russia Federation for Motor Vehicles or other authorized technical services by the Russian approval authorities E22
For additional information from the manufacturer UAZ LLC, the contact information is;
UAZ LLC, 123317, Russian Federation, Moscow, Testovskaya street 10, entrance 2, floor 8, +7 (495) 228-30-45
Contact for Homologation Certificates at UAZ LLC: Mrs Anna Karmanovich aa.karmanovich@sollers-auto.com
Contact the representative for UAZ LLC in Belgium: Mr Jacques Koelewijn info@uaz.be
uropean Parlement and Council with regards to the approval market surveillance of motor vehicles
russian type approval certificates and test reports for the category N1G
registration documents with the vehicle
example Individual approval certificate e8 in compliance with Model D of the directive (EU) 2018/858
russian type approval certificate
1A sound level regulation UN regulation No 51
2A Emissions (Euro 5 and Euro 6) light duty vehicles regulation 715/2007
(WLTP Petrol / LPG) EURO 6d Temp-EVAP-ISC / 715/2007*2018/1832CI Expertise No 410502-20-TAC
Contact TÜV SUD / TZV CZ / CZ Ministry of Transport for report
(WLTP Petrol) EURO 6d Temp-EVAP-ISC / 715/2007*2018/1832CI Expertise No 410498-20-TAC
Contact TÜV SUD / TZV CZ / CZ Ministry of Transport for report
(WLTP Petrol) EURO 6c-EVAP / 692/2008*2018/1832AF Expertise No 41286-19-TAC
Contact TÜV SUD / TZV CZ / CZ Ministry of Transport for report
3A Prevention of fire risk (liquid fuel tanks) UN regulation No 34
3B Rear underrun protective devices UN regulation No 58
Complies see individual approval certificate for vehicle from technical service TZV CZ
4A Space for mounting and fixing rear registration plates regulation 1003/2010
Complies see individual approval certificate for vehicle from technical service TZV CZ
5A Steering equipment UN regulation No 79
Complies see individual approval certificate for vehicle from technical service TZV CZ
6A Vehicle access and manoeuvrability regulation 130/2012
Complies see individual approval certificate for vehicle from technical service TZV CZ
6B Door latches and door retention components UN regulation No 11
Complies see individual approval certificate for vehicle from technical service TZV CZ
7A Audible warning devices and signals UN regulation No 28
8A Devices for indirect vision and their installation UN regulation No 46
9A / 9B Braking of vehicles and trailers UN regulation No 13 and No 13-H
Report No 16846/2018 - Contact TZV CZ / CZ Ministry of Transport for report
10A Electromagnetic compatibility UN regulation No 10
13B Protection of motor vehicles against unauthorised use UN regulation No 116
Complies see individual approval certificate for vehicle from technical service TZV CZ
14A Protection of the driver against the steering mechanisme in the event of impact UN regulation No 12
not applicable
15A Seats, their anchorages and any head restraints UN regulation No 17
17A Vehicle access and manoeuvrability (reverse gear) regulation No 130/2012
Complies see individual approval certificate for vehicle from technical service TZV CZ
17B Speedometer equipment UN regulation No 39
18A Manufacturer's statutory plate and VIN regulation No 19/2011
Complies see individual approval certificate for vehicle from technical service TZV CZ
19A Safety belts anchorages, Isofix anchorages systems and Isofix top tether anchorages UN regulation No 14
20A Installation of lighting and light signalling devices on vehicles UN regulation No 48
21A Retro-reflecting devices for power- driven vehicles and their trailers UN regulation No 3
See row 20A
22A Front and rear position lamps, stop-, lamps and end-outline marker lamps for motor vehicles and their trailers UN regulation No 7
See row 20A
22B Daytime running lamps for power- driven vehicles UN regulation No 87
See row 20A
22C Side-marker lamps for motor vehicles and their trailers UN regulation No 91
See row 20A
23A Direction indicators for power- driven vehicles and their trailers UN regulation No 6
See row 20A
24A Illumination of rear- registration plates of power- driven vehicles and their trailers UN regulation No 4
See row 20A
25A Power- driven vehicle's sealed- beam headlamps (SB) emitting an European asymmetrical passing beam or a driving beam or both UN regulation No 31
See row 20A
25B Filament lamps for use in approved lamp units of power-driven vehicles and their trailers UN regulation No 37
See row 20A
25C Motor vehicle headlamps equipped with gas-discharge light sources UN regulation No 98
See row 20A
25D Gas-discharging light sources for use in approved gas-discharge lamp units of power- driven vehicles UN regulation No 99
See row 20A
25E Motor vehicle headlamps emitting an asymmetrical passing beam or a driving beam or both and equipped with filament lamps and / or LED modules UN regulation No 112
See row 20A
25F Adaptive front-lighting systems (AFS) for motor vehicles UN regulation No 123
See row 20A
26A Power-driven vehicles front fog lamps UN regulation No 19
See row 20A
27A Towing device regulation No 1005/2010
Complies see individual approval certificate for vehicle from technical service TZV CZ
28A Rear fog lamps for power- driven vehicles and their trailers UN regulation No 38
See row 20A
29A Reversing lights for power- driven vehicles and their trailers UN regulation No 23
See row 20A
30A Parking lamps for power- driven vehicles UN regulation No 77
See row 20A
31A Safety-belts, restraint systems, child restraint systems and Isofix child restraint systems UN regulation No 16
Complies see individual approval certificate for vehicle from technical service TZV CZ
33A Location and identification of hand controls, tell-tales and indicators UN regulation No 121
34A Windscreen defrosting and demisting systems regulation No 672/2010
Complies see individual approval certificate for vehicle from technical service TZV CZ
35A Windscreen wiper and washer systems regulation No 1008/2010
Complies see individual approval certificate for vehicle from technical service TZV CZ
36A Heating systems UN regulation No 122
41A Emission (Euro VI) heavy duty vehicles access to information regulation No 595/2009
See row 2A
43A Stray suppression systems regulation No 109/2011
Not applicable (N1G)
45A Safety glazing materials and their installation on vehicles UN regulation No 43
46A Installation of tyres regulation No 661/2009 - 458/2011
Complies see individual approval certificate for vehicle from technical service TZV CZ
46B Pneumatic tyres for motor vehicles and their trailers (Class C1) regulation No 661/2009 UN regulation 30
See row 46A
46C Pneumatic tyres for motor vehicles and their trailers (Class C2 and C3) regulation No 661/2009 UN regulation 54
See row 46A
46D Tyre rolling sound emissions adhesion on wet surfaces and rolling resistance (Classes C1, C2 and C303) regulation No 661/2009 UN regulation 117
See row 46A
46E Temporary-use spare unit, runflat tyres system and tyre pressure monitoring system regulation No 661/2009 UN regulation 64
Not applicable
48A Masses and dimensions regulation No 1230/2012
Complies see individual approval certificate for vehicle from technical service TZV CZ
TC RU E-RU.MT02.00388.P6 (All versions masses)
Report No 8/SO/17/TRS/101-15 (390945 R Points)
Report No 8/SO/17/TRS/102-15 (390995 R points)
49A Commercial vehicles with regard to their external projections forward of cab's rear panel UN regulation No 61
50A Mechanical coupling components of combinations of vehicles UN regulation No 55
54A Protection of occupants in the event of lateral collision UN regulation No 95
Not applicable
R point of seats is more than 700mm above the road surface
56A Vehicles for carriage of dangerous goods UN regulation No 105
Not applicable
58 Pedestrian protection regulation No 78/2009
Complies see individual approval certificate for vehicle from technical service TZV CZ
Vehicle is fitted with an electronic antilock braking system acting on all wheels
Vehicle to be approved is out of scope of sections 2 and 3 Annex I to regulation (EC) No 78/2009 - R Point of driver's seat is less than 1.100 mm longitudinally rearwards from the front axle transverse centreline
Vehicle is not equipped by frontal protection systems
59 Recyclability directive 2005/64/EC
Not applicable
61 Air-conditioning systems directive 2006/40/EC
Not applicable
62 Hydrogen system regulation No 79/2009
Not applicable
63 General safety regulation No 661/2009
See rows above and below
67 Specific components for liquefied petroleum gases (LPG) and their installation on motor vehicles UN regulation No 67
Complies see individual approval certificate for vehicle from technical service TZV CZ
68 Vehicle alarm systems (VAS) UN regulation No 97
Not applicable
69 Electric safety UN regulation No 100
Not applicable
70 Specific components for CNG and their installation on motor vehicles UN regulation No 110
Not applicable
71 Cab strength UN regulation No 29
72 eCall system regulation 2015/758
Not applicable
russian type approval certificate TR CU 018/2011
The Technical Regulation TR CU 018/2011 On safety of wheeled vehicles has been developed primarily for the protection of life, health, property and the environment in EAEU countries as well as for the prevention of misleading markings. The regulation prescribes the requirements for the safety of motor vehicles on wheels (e.g. trucks and passenger cars) during the marketing and commissioning in the field of the Eurasian Economic Union.
The purpose of the Technical Regulation TR CU 018/2011 is both to ensure a socially acceptable level of safety in the operation of motor vehicles, as well as to coordinate with international technical standards of safety requirements for vehicles. The conformity assessment with the requirements of the Technical Regulation TR CU 018/2011 On safety of wheeled vehicles is one of the prerequisites for successful access to the Russian and Eurasian market.
Adopted on December 9, 2011
Came into force on January 1, 2015
Until July 1, 2016, the national conformity certificates were accepted for import into the countries of the customs union. From July 1, 2016 onwards the technical regulation TR CU 018/2011 On safety of wheeled vehicles permanently rendred the national technical regulation such as GOST or russian TR certification invalid.
TR CU 018/2011 consists of:
safety requirements for motor vehicles on wheels
rules for the marking of vehicles
regulation of the circulation of motor vehicles on the market
the conformity assessment with the requirements of the Technical Regulation
Safety of wheeled vehicles regulation 018/2011

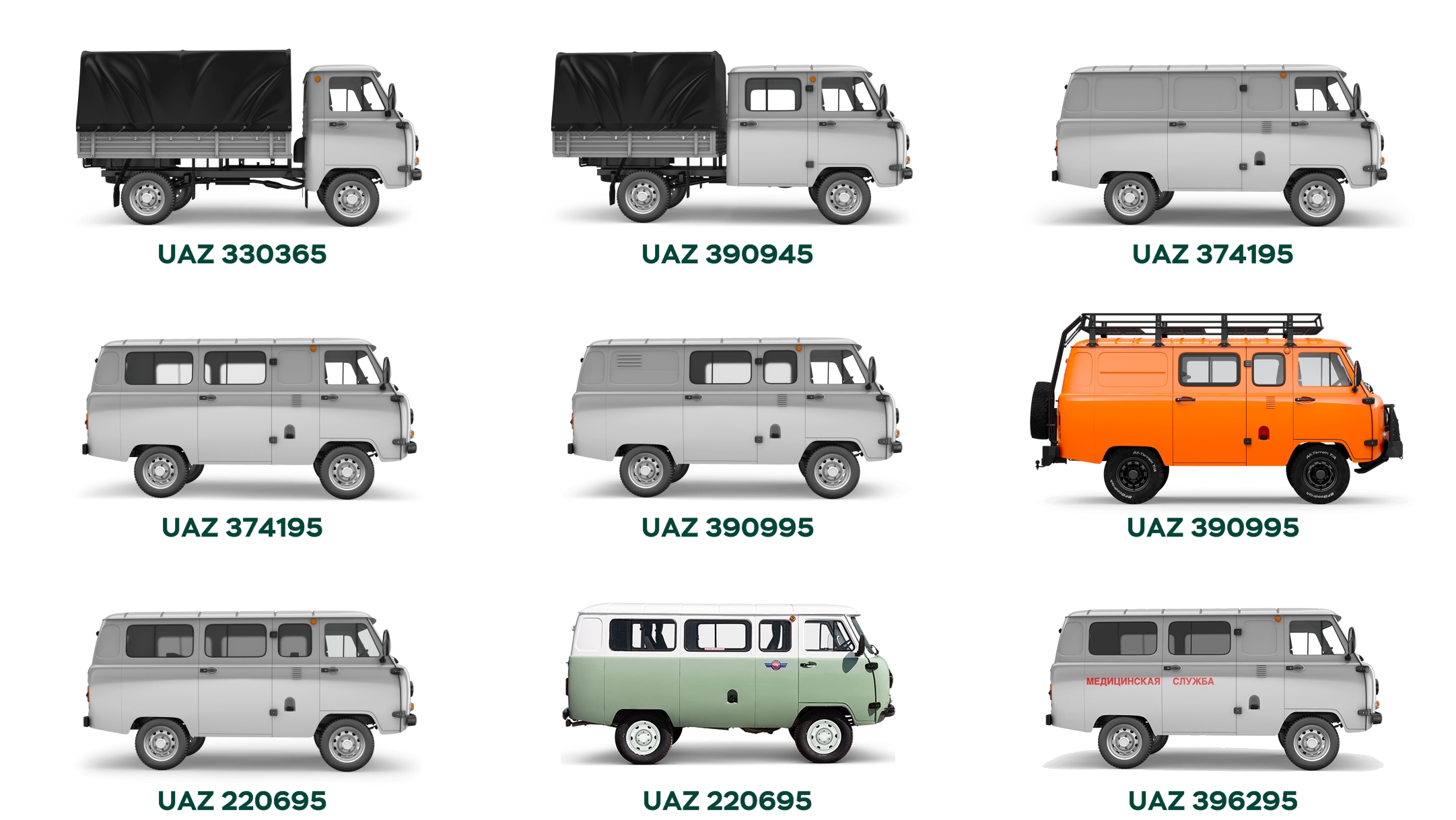

Report No 8/FO/A3P4/TRS/516-17 (Model 330365-901 / 330365-902 / 330365-903 / 330365-904 / 390945-901 / 390945-902 / 390945-903)
Report No 8/FO/A6P2.4/TRS/147-17 (Model 390995-902 / 390945-902)
Report No 8/SO/A3P3/TRS/430-19 (Model 390945)
Report No 8/SO/A3P3/TRS/431-19 (Model 374195-05)
Report No 8/SO/A3P6/TRS/633-17 (Model 330365)
Report No 8/SO/A3P6/TRS/634-17 (Model 220695)
Report No 8/SO/A3P14/TRS/215-17 (Model 330365)
Report No 8/SO/A3P16/TRS/589-18 (Model 330365)
Report No 8/SO/A3P4/TRS/1012-18 (Model 390995)
Report No 8/SO/A3P4/TRS/1013-18 (Model 330365)
Safety of wheeled vehicles regulation 018/2011 UN regulation 13.11 with (ABS)
Report No U10/TRS/0381-19 (Model 390995)
Report No U10/TRS/0383-19 (Model 330365)
Safety of wheeled vehicles regulation 018/2011 UN regulation 51.02 (Sound level)
Report No U10/TRS/1803-19 (Model 390945)
Report No U10/TRS/1862-19 (Model 390945)
Report No U10/TRS/1870-19 (Model 390945)
Report No U10/TRS/1871-19 (Model 390945)
Report No U10/TRS/1925-19 (Model 390995)
Report No U10/TRS/1937-19 (Model 390995)
Report No U10/TRS/1777-19 (Model 390995)
Report No U10/TRS/1782-19 (Model 390945)
